Introduction to Networking in the VMS

VAST Data provides a robust networking architecture that facilitates high availability, load balancing, and seamless client access. This lab will guide you through exploring the key networking components and configurations in VAST Data VMS.

Prerequisites

Before beginning this lab, please ensure you have a Cosmos Community account, as it’s needed to proceed and access the lab environment.

Access the VAST Management System GUI

Access The VAST Data Lab Environment

Go to this URL vastdata.thecosmoslabs.com or click the button below:

Access VAST Lab

Make sure you’re logged in with your Cosmos community account.

VAST Data lab environment login page

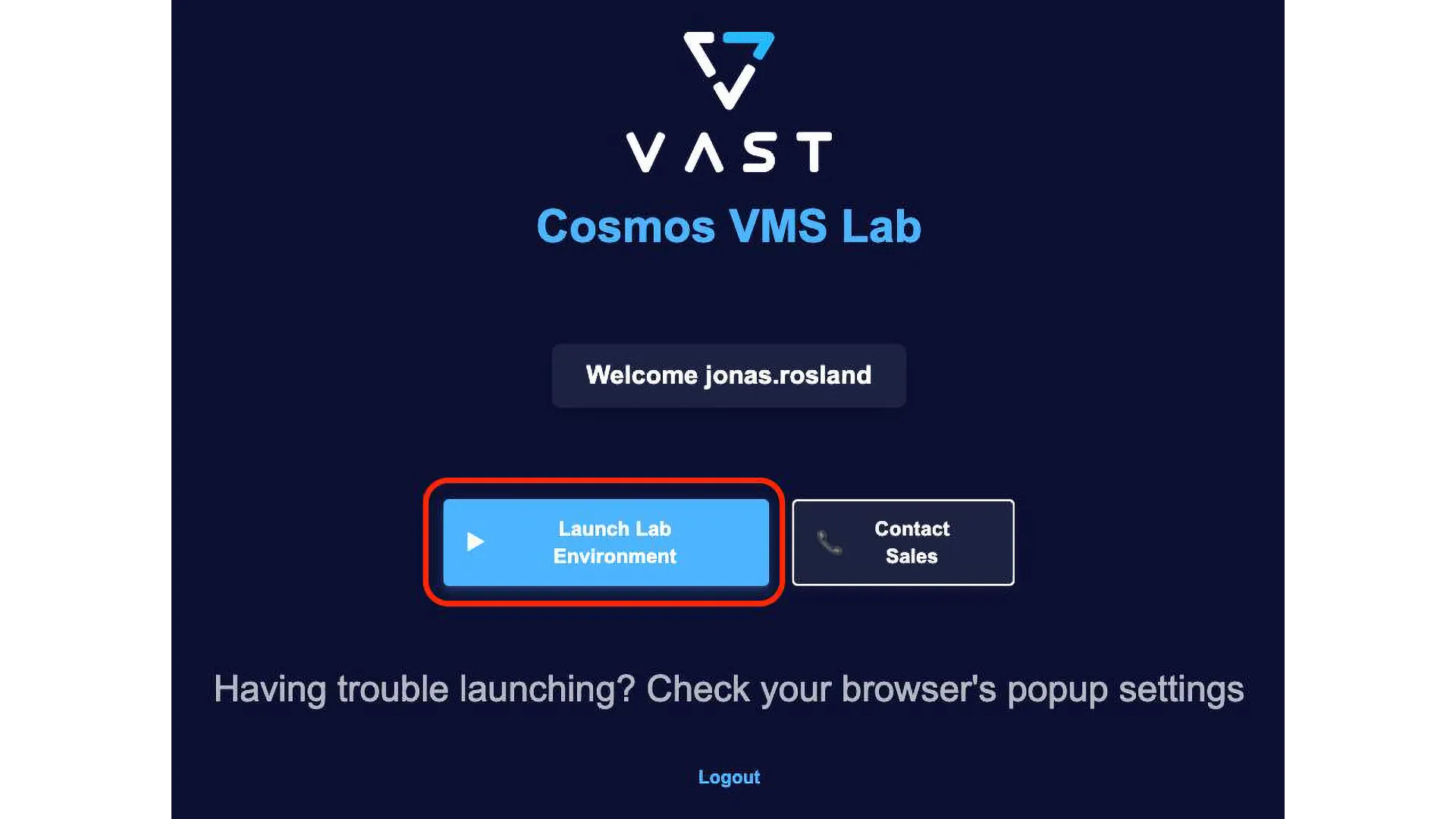

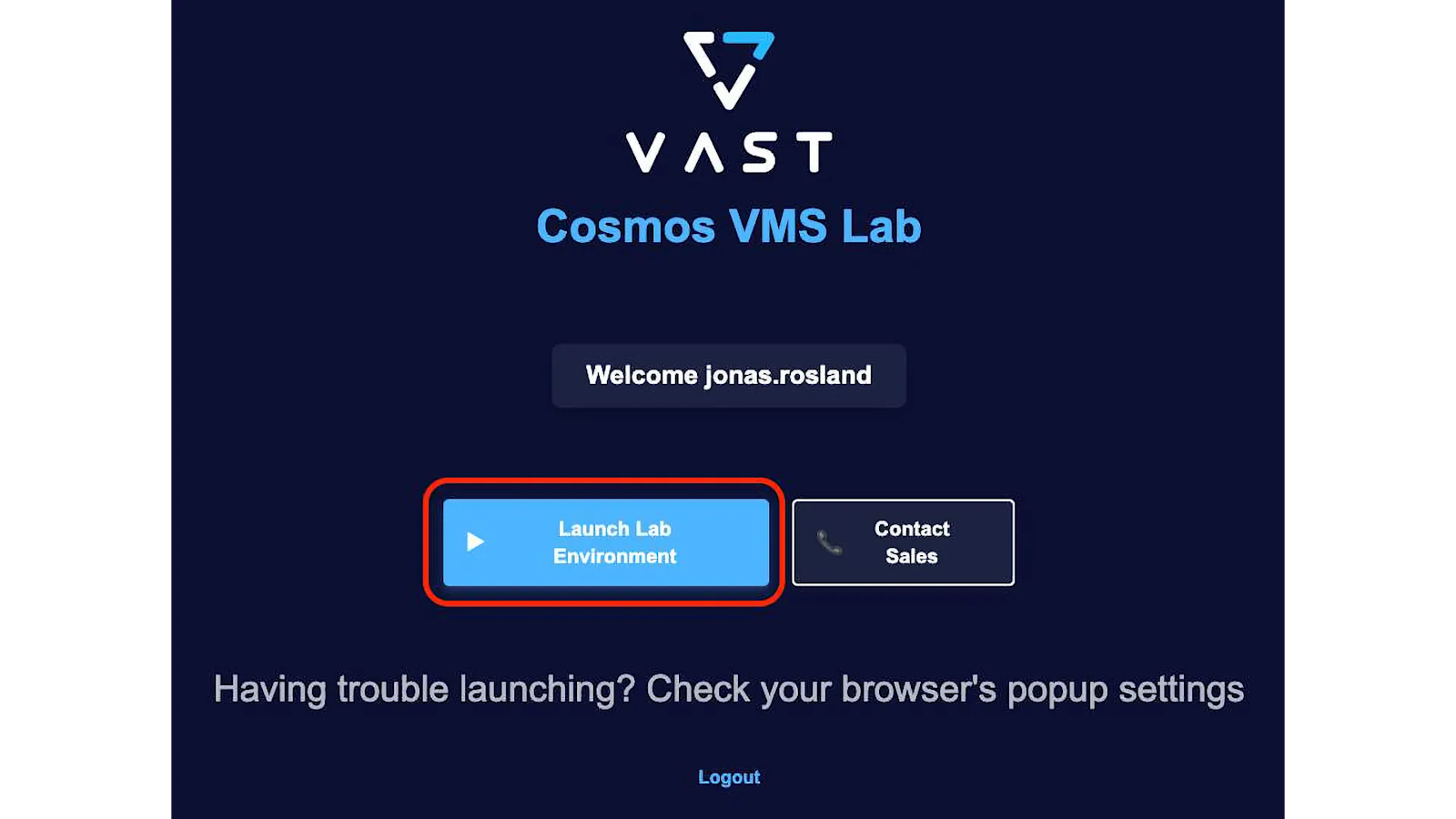

Click “Launch Lab Environment”. You might need to allow popups for the site, so if nothing happens, make sure you do so.

Upon entering the lab environment, click to accept the end user agreement.

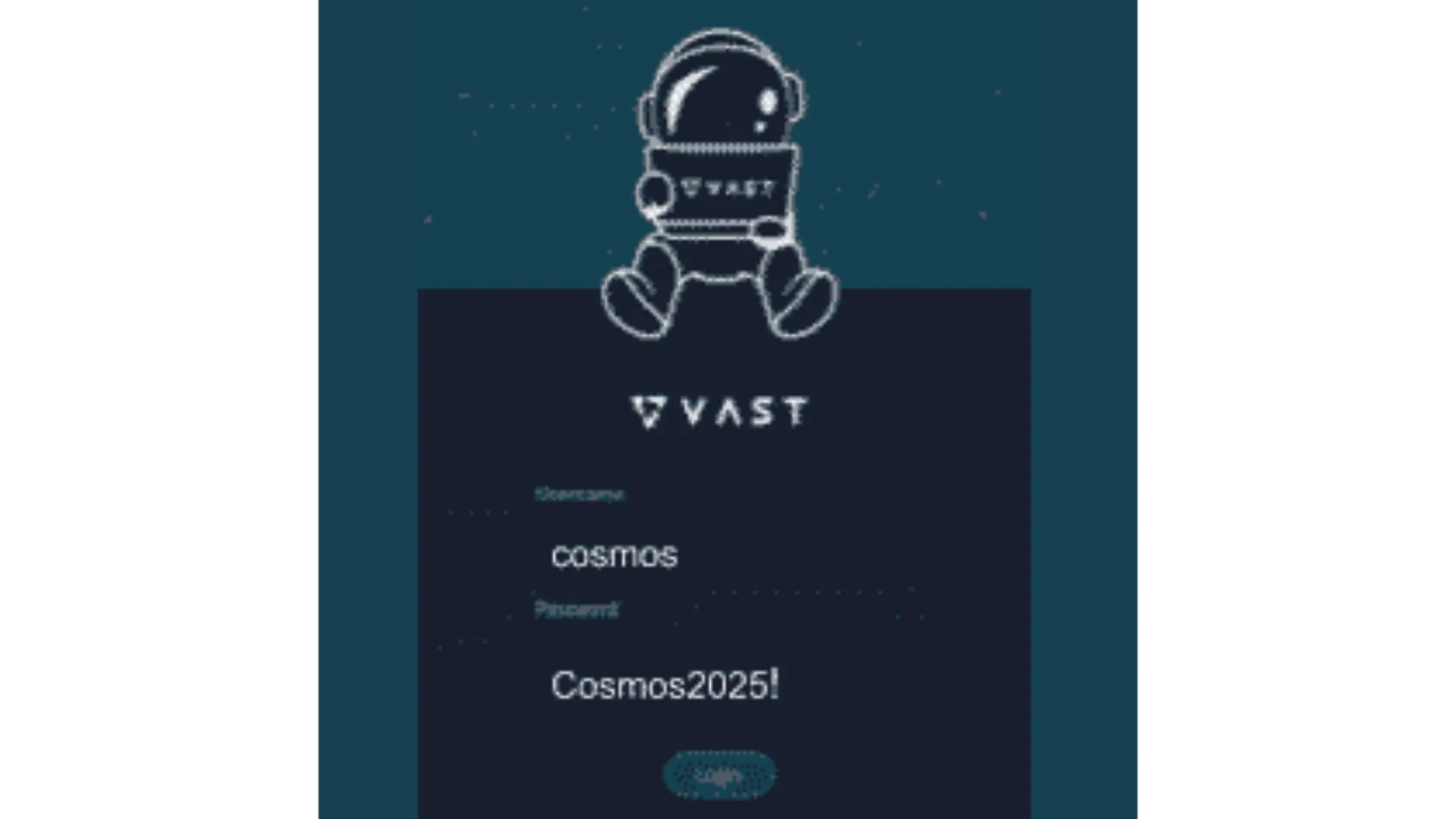

At the login screen use the credentials provided.

1. Exploring VIP Pools Configuration

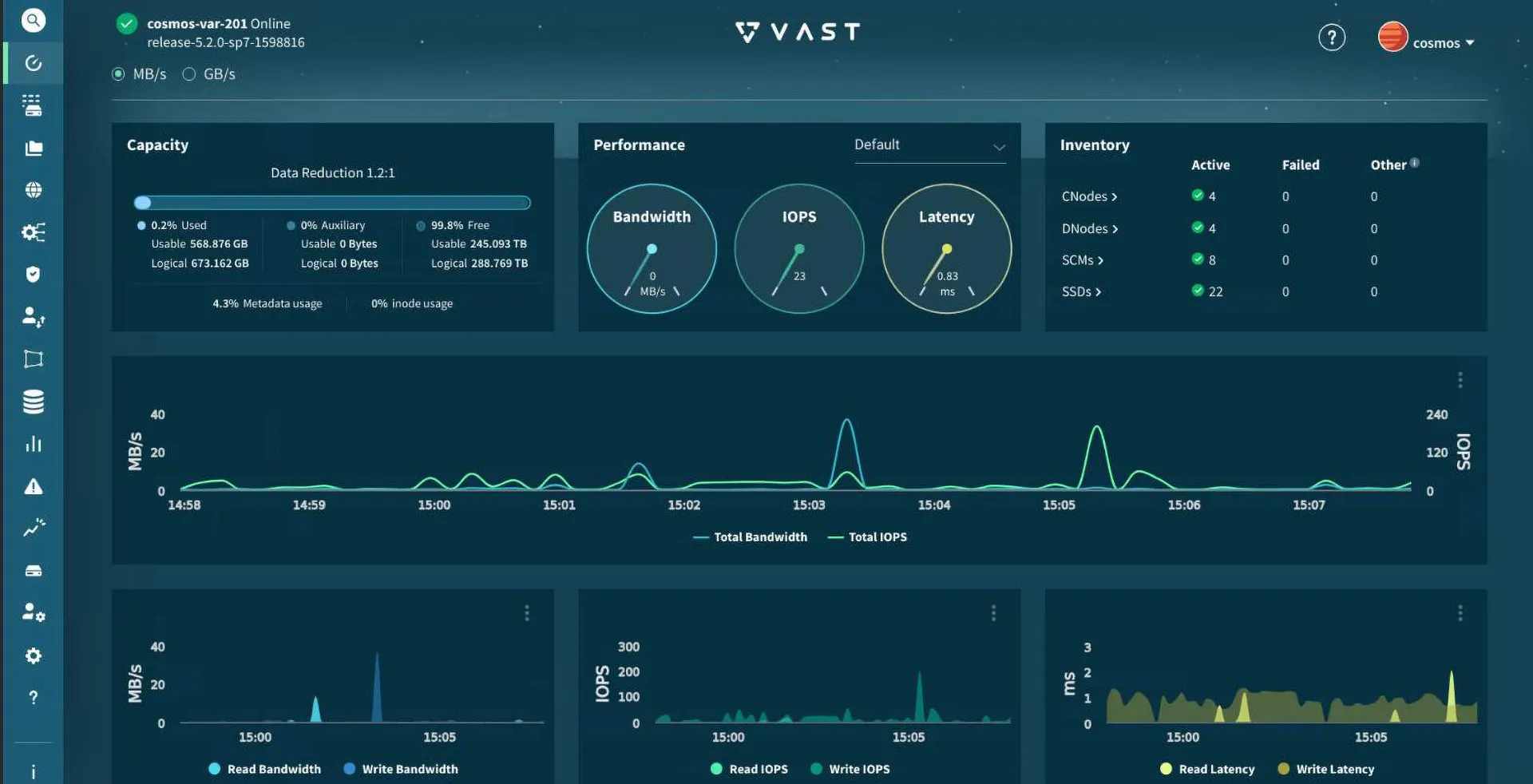

You will start off in the Dashboard section of the VAST Management System GUI. This section provides an overview of the system’s health and performance.

The left-hand navigation will open other sections in the GUI. For a full list of sections, click here.

Note that we’re operating in read-only mode, so we’ll focus on observing rather than modifying.

1.1 Understanding VIP Pools with Different Roles

VIP pools in VAST can serve different roles such as “Protocols” and “Replication.” Each role specializes the VIP pool for specific types of network traffic.

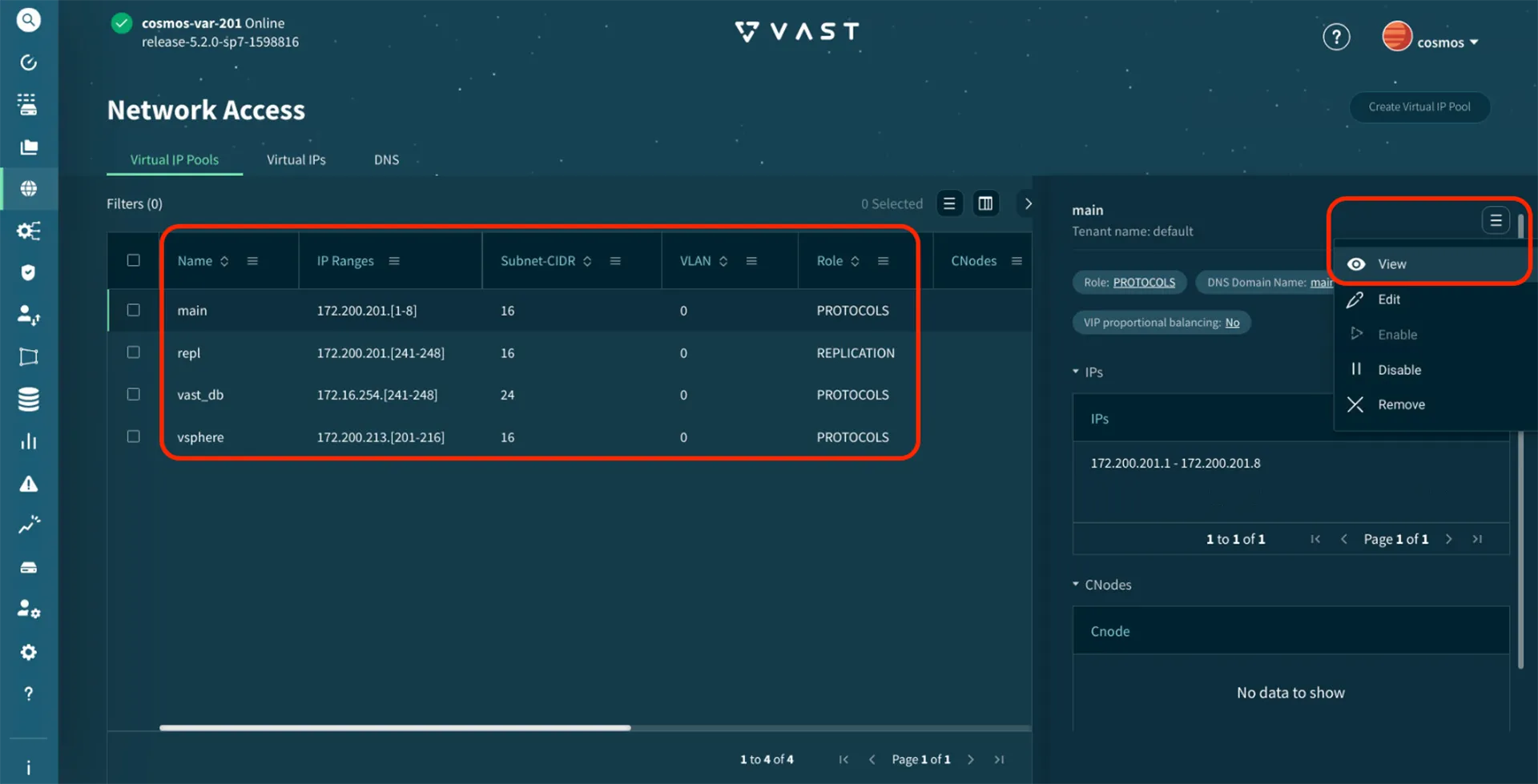

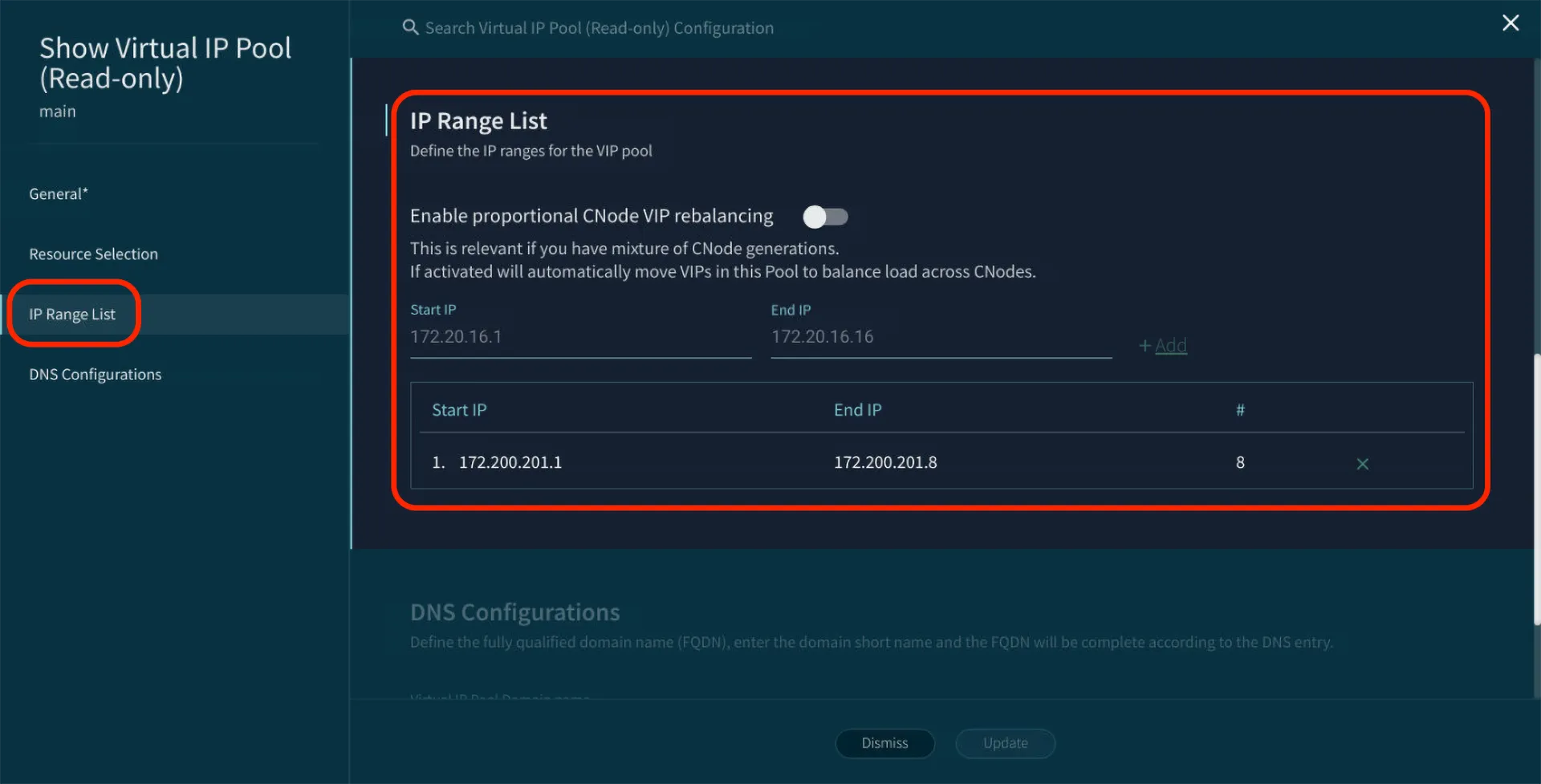

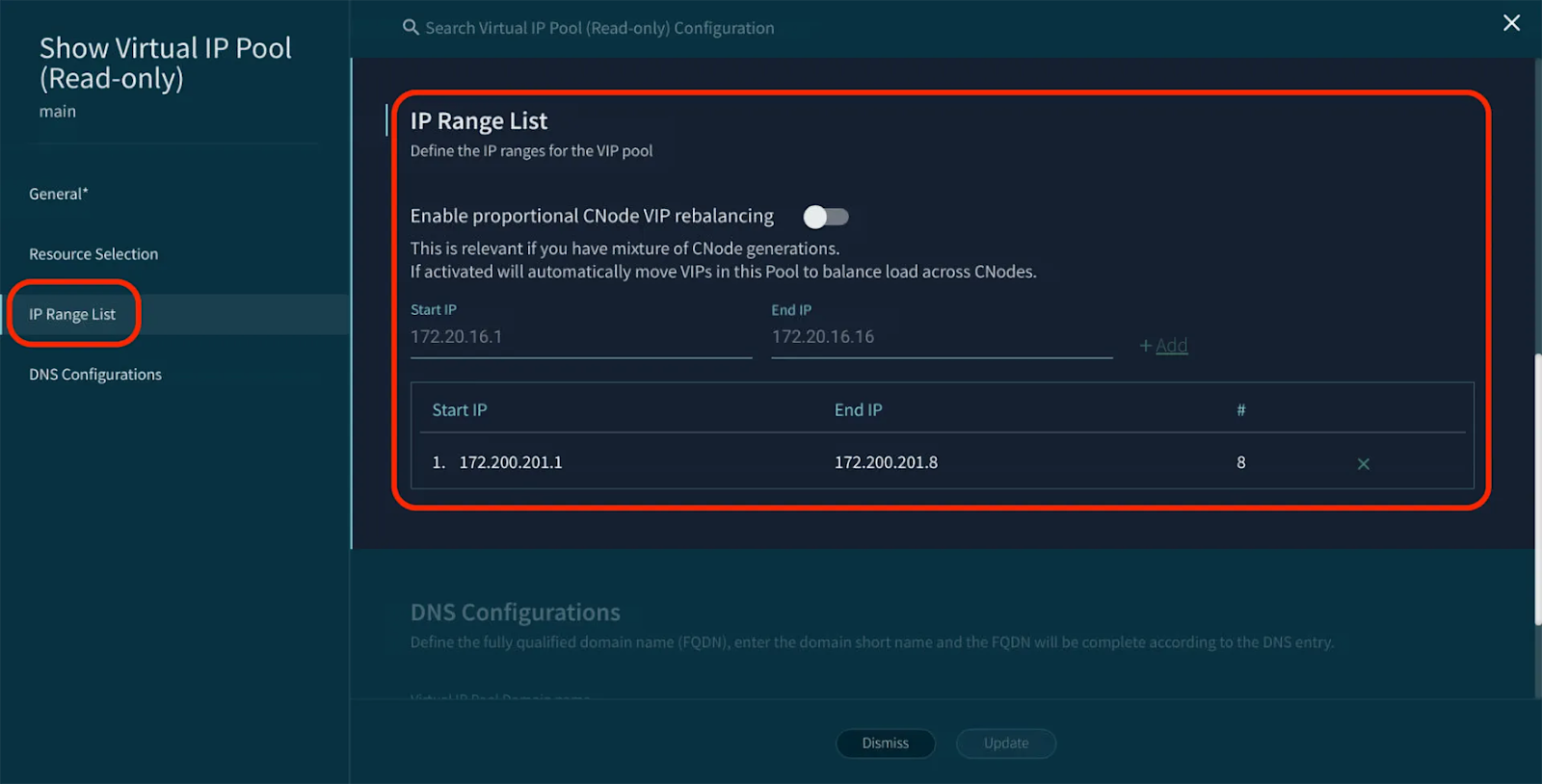

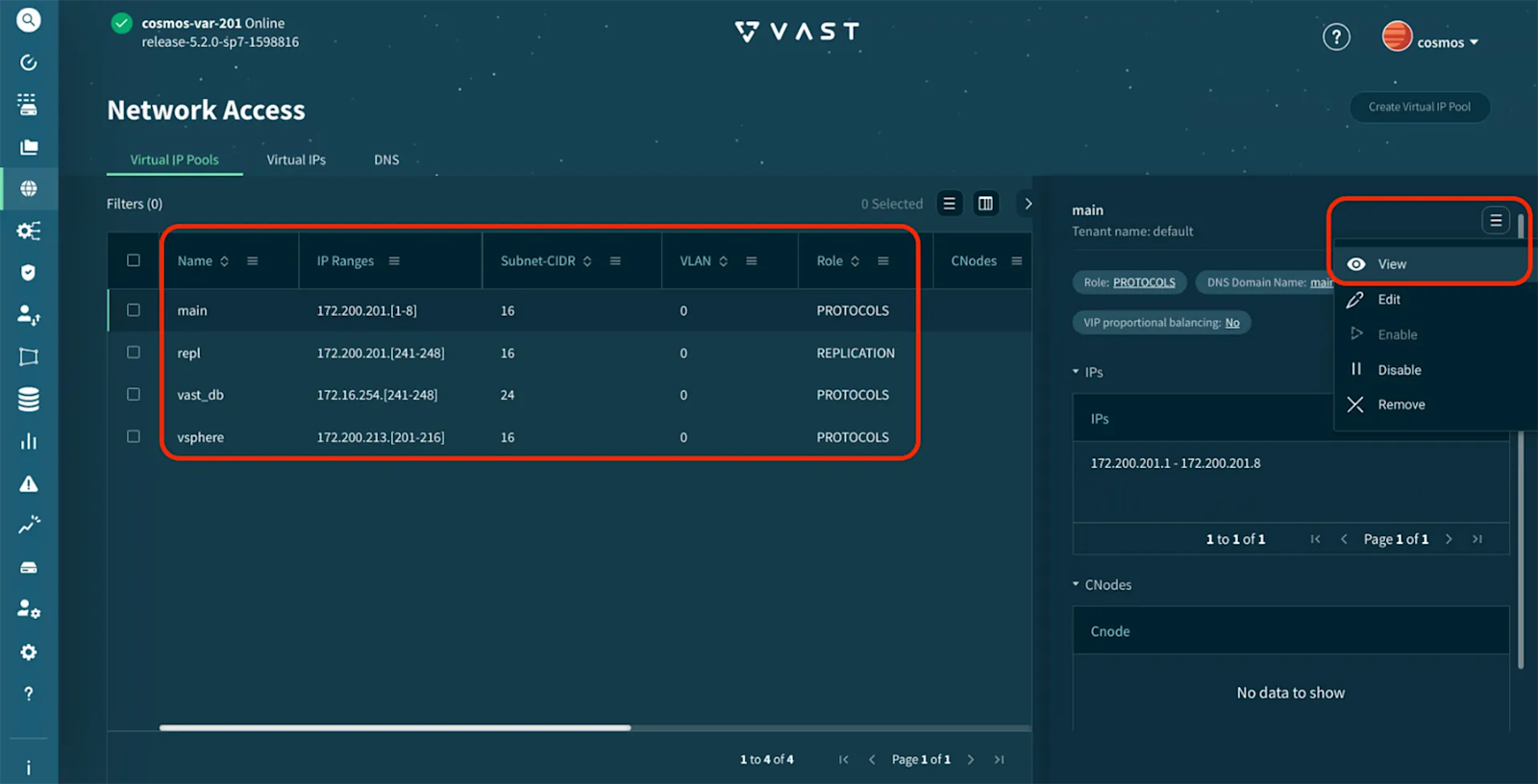

1. In the Network Access section, observe the existing VIP pools A. Note the different roles assigned to each pool (Protocol, Replication) B. Examine the networking details for each pool by clicking on the hamburger menu to the right, and click “View I ) Gateway IP address (if set) II) Subnet mask III) VLAN ID

2. VIP Pool and CNode Assignment

VIP Pool and CNode Assignment is crucial because it enables:

1. Resource Optimization: Strategically allocate network traffic to appropriate compute resources

2. Workload Isolation: Prevent different workloads (production vs. development) from interfering with each other

3. Performance Control: Create predictable performance profiles for different applications

4. Hardware Matching: Direct specific workloads to CNodes with specialized capabilities

5. High Availability: Distribute connections to maintain service if some infrastructure components fail

This capability is fundamental to tuning VAST’s architecture for optimal performance, reliability, and scalability in enterprise environments.

2.1 Understanding CNode Assignment

VIP pools can be assigned to specific CNodes for workload isolation and performance optimization.

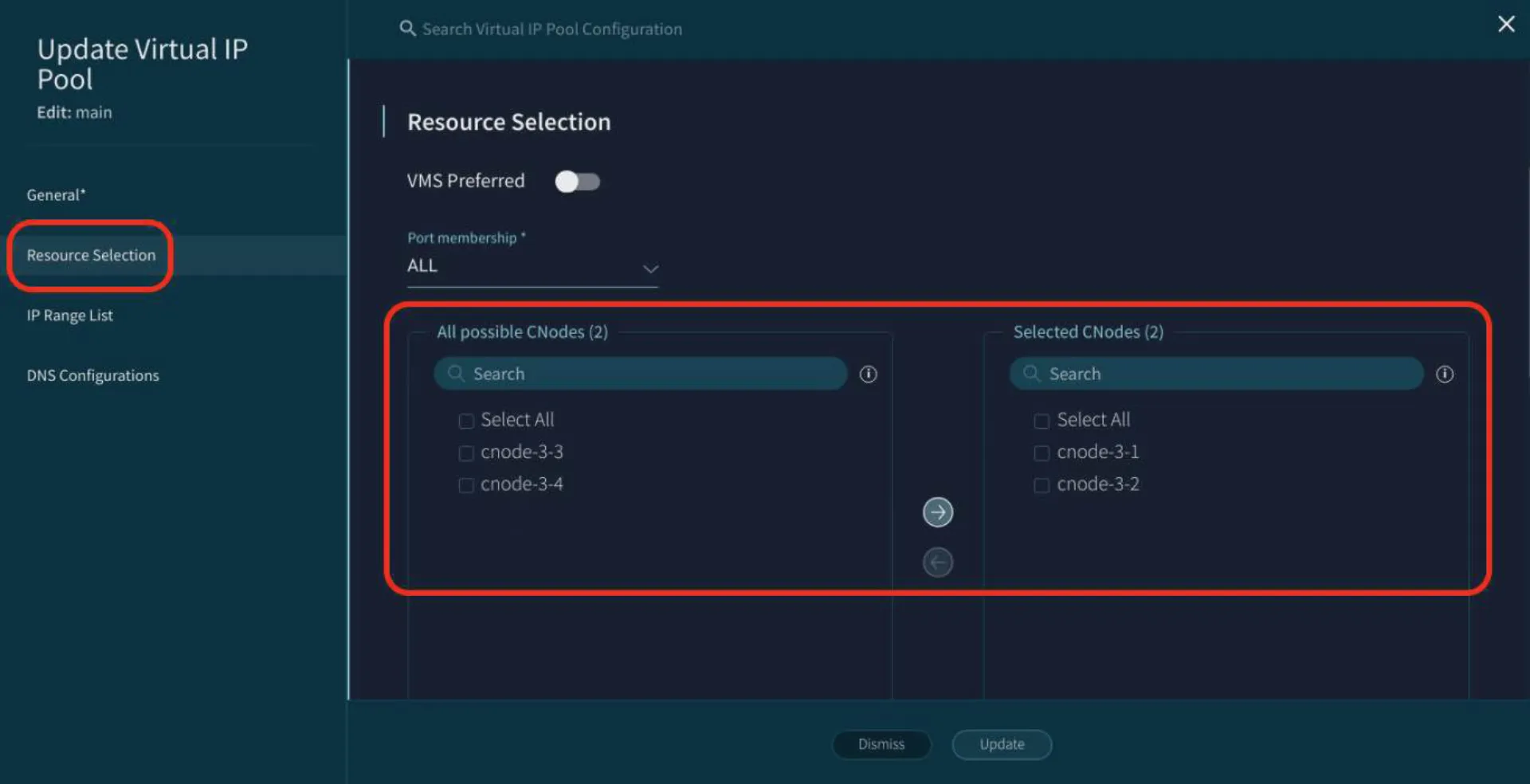

1. Select a VIP pool and examine its CNode assignments

2. Observe how the assignment is configured • Even distribution across all CNodes • Restricted to specific CNodes or groups

3. Note scenarios where this would be beneficial: • Dedicating certain CNodes for production workloads • Assigning VIP pools to CNodes with specific capabilities (faster network connections, more powerful CPUs)

3. Client Connectivity and Traffic Distribution

This step is essential because it demonstrates how VAST manages client connections across the infrastructure:

1. Load Balancing: VAST automatically distributes client connections across available CNodes in a VIP pool, preventing any single node from becoming a bottleneck.

2. Protocol Support: Understanding how different protocols (NFS, SMB, S3) interact with VIP pools is crucial because each protocol has unique requirements and optimizations.

3. Monitoring Capabilities: Learning to use VAST's built-in monitoring tools lets you observe connection patterns, identify potential issues, and optimize for better performance.

4. Failover Behavior: This step reveals how client connections reroute when a CNode becomes unavailable, essential knowledge for planning high-availability deployments.

5. Performance Analysis: By observing actual traffic patterns, you can make data-driven decisions about VIP pool configurations and resource allocation.

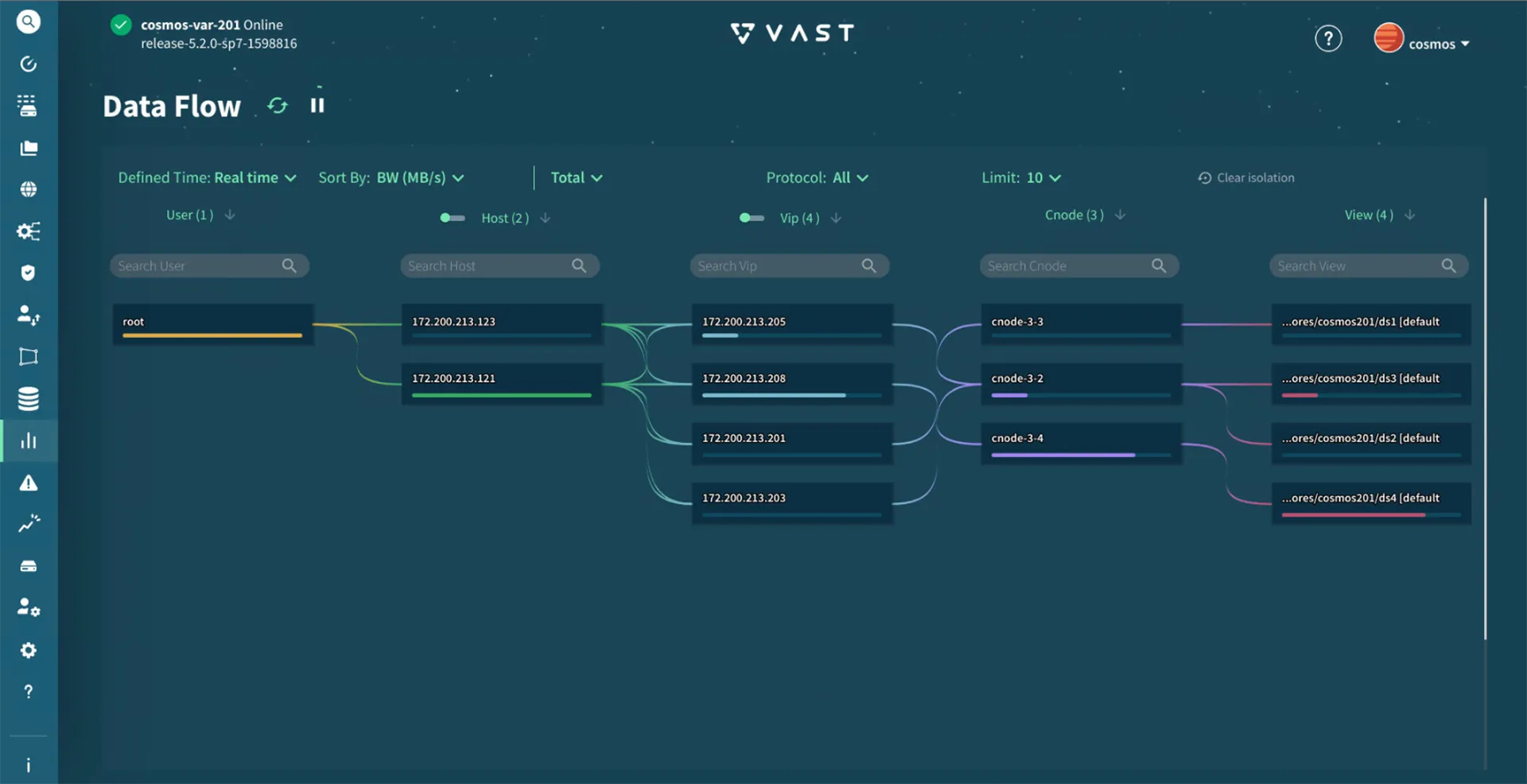

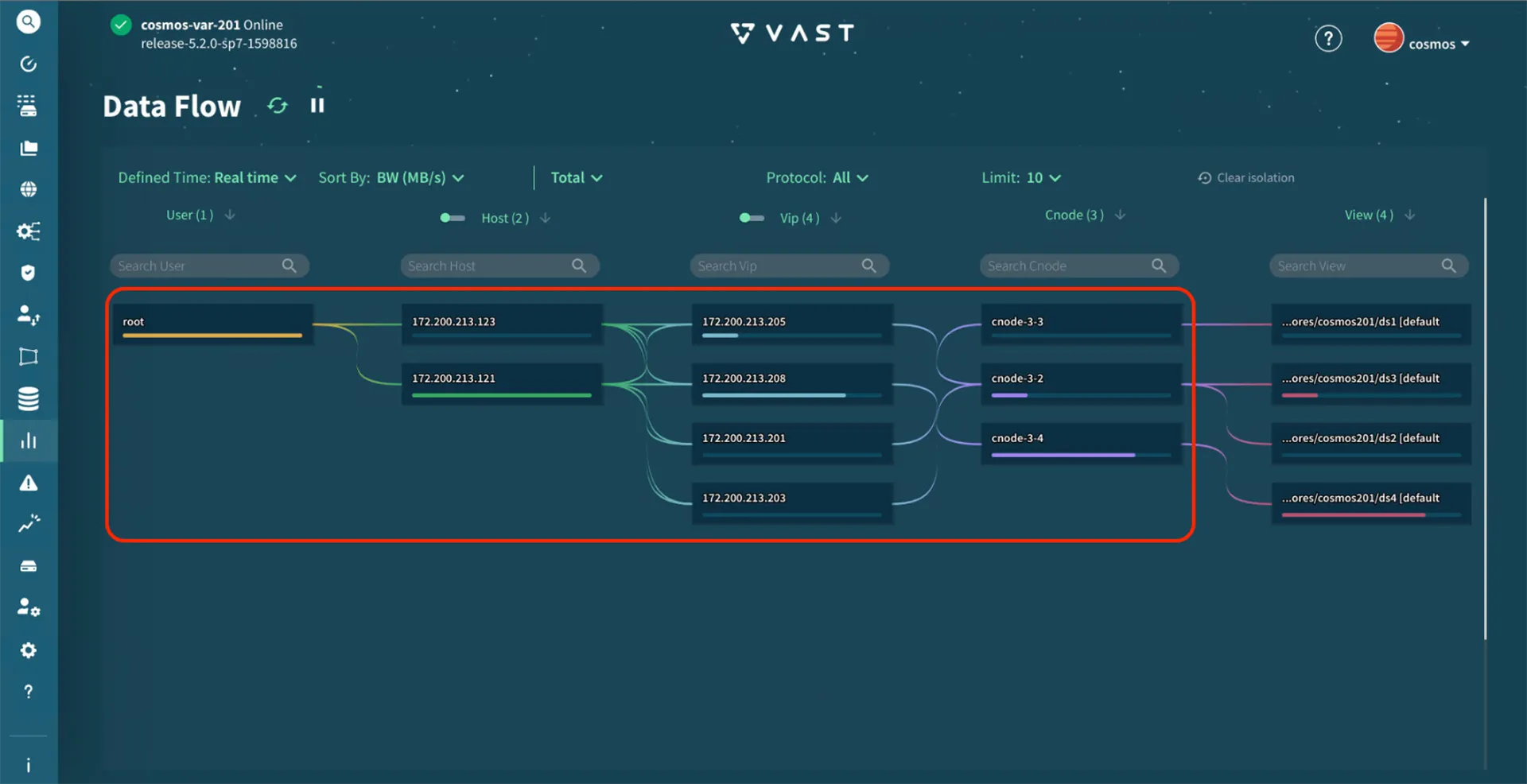

3.1 Accessing the Analytics - Data Flow UI

Navigate to the Analytics section in the VAST GUI:

1. Select the Data Flow view

2. This visualization shows the flow of data through your VAST system, including client connections

3.2 Analyzing Traffic Distribution Across CNodes

1. In the Data Flow view, focus on the relationship between clients and CNodes

2. Observe how the system distributes client requests across available CNodes

3. Note any patterns in the distribution (e.g., even distribution or weighted toward certain nodes)

4. Look for indicators of load balancing in action

5. By hovering over a user, host, VIP, CNode, or View, you can identify metrics such as: • Average bandwith (MB/s) • Operations per second • Links between users and the data they access

3.3 Monitoring Protocol-Specific Traffic

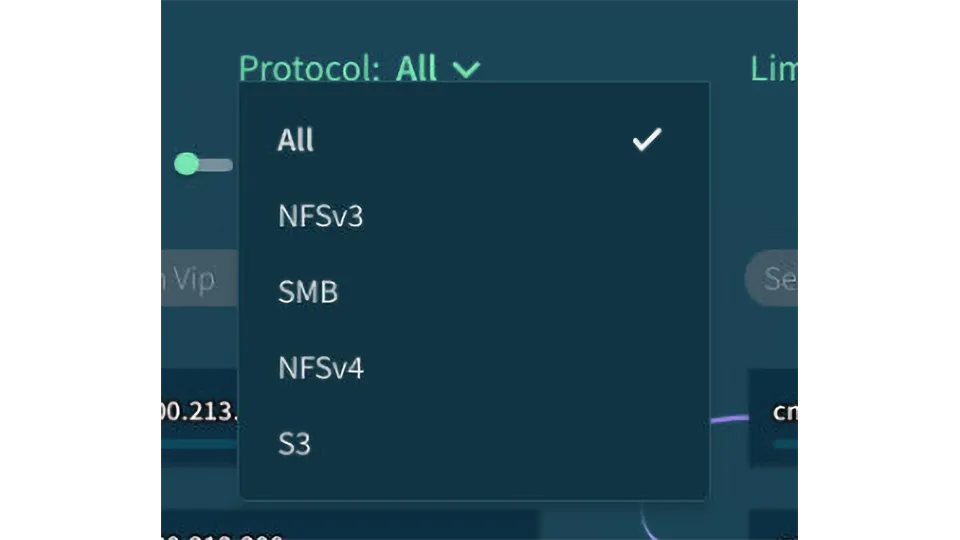

1. Filter the Data Flow view by protocol (NFS, SMB, S3)

2. Compare the traffic patterns for different protocols

3. Note any differences in how the system handles various protocol connections

4. Observe throughput and connection counts for each protocol

4. Understanding VAST DNS Service

DNS configuration is critical because it determines how clients discover and access your VAST resources:

1. Name Resolution: The DNS service translates friendly domain names into VIP pool IP addresses, simplifying client configuration and access.

2. Client Experience: Properly configured DNS makes accessing VAST resources as simple as connecting to a standard hostname, abstracting away the complexity of the underlying infrastructure.

3. Infrastructure Flexibility: DNS allows you to modify backend IP structures without changing client configurations, enabling seamless infrastructure updates.

4. Multi-protocol Support: Understanding how DNS works with different protocols helps ensure all clients can reliably access data regardless of their access method.

5. Integration with Enterprise Systems: Learning how VAST DNS integrates with external DNS infrastructure is essential for enterprise deployments where VAST must function as part of a larger ecosystem.

4.1 Examining DNS Service Configuration

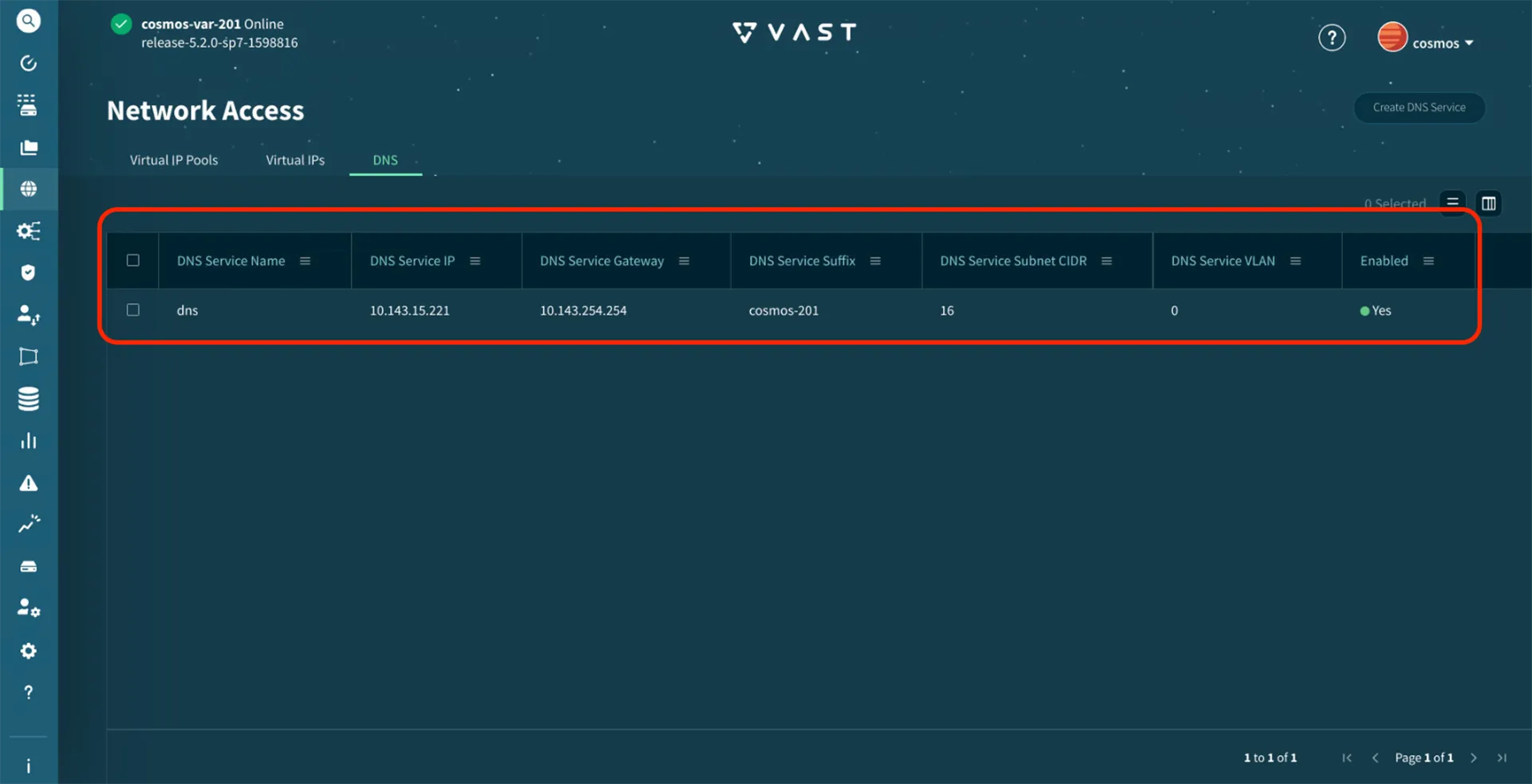

1. Navigate to the DNS service configuration section under Network Access

2. Observe how the VAST DNS service is configured: • DNS service name • IP address for the DNS service • Domain suffix • Association with VIP pools via VIP Pool Domain Names

3. Review how domain names are resolved to VIP pool IP addresses

4. Note how this facilitates client access to VAST resources

4.2 Understanding External DNS Integration

Configuring the VAST Cluster DNS server is optional. The alternative is to configure all DNS forwarding on an external DNS server. You do this by configuring delegation records to forward client requests for the VAST FQDN to all the virtual IPs configured on the cluster. In this case, your DNS server responds to each query with all CNode virtual IPs. The client randomly selects one of the IPs. Read more at support.vastdata.com.

4.3 Troubleshooting DNS Issues

1. Identify common DNS misconfigurations: • Incorrect IP addresses • Incorrect domain suffixes • Misconfigured DNS delegations

2. Learn how to diagnose these issues: • Verifying DNS server settings in the VAST GUI • Checking external DNS records • Using network tools like nslookup or dig

Key Takeaways

1. VIP pools ensure load balancing and high availability in VAST Data VMS

2. IP addresses can be flexibly assigned to VIP pools to meet various networking requirements

3. VIP pools can be assigned to specific CNodes for workload isolation and performance optimization

4. DNS facilitates seamless client access to VAST resources

5. Understanding these networking concepts is essential for effectively managing and troubleshooting a VAST environment
